ID 23579

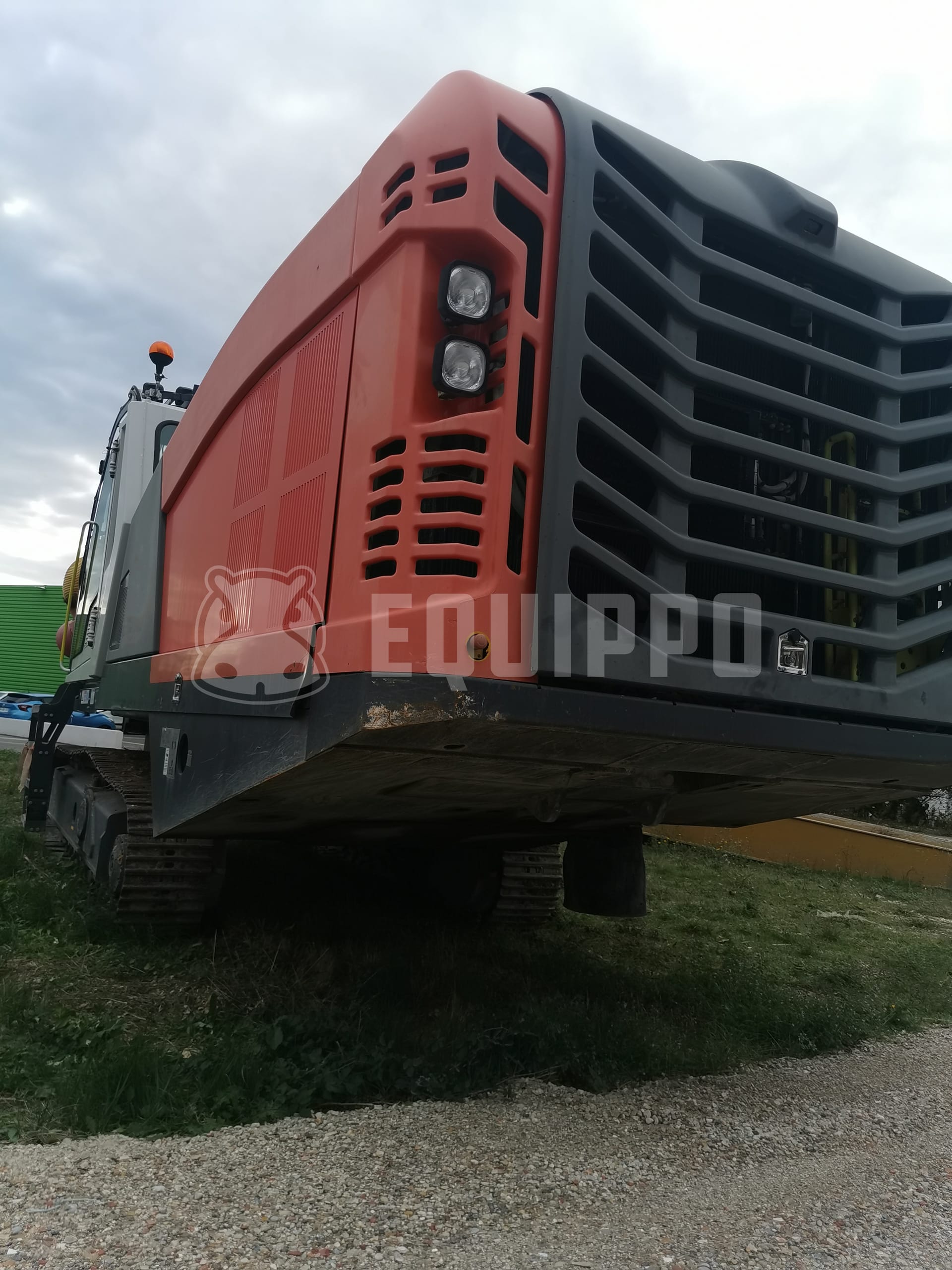

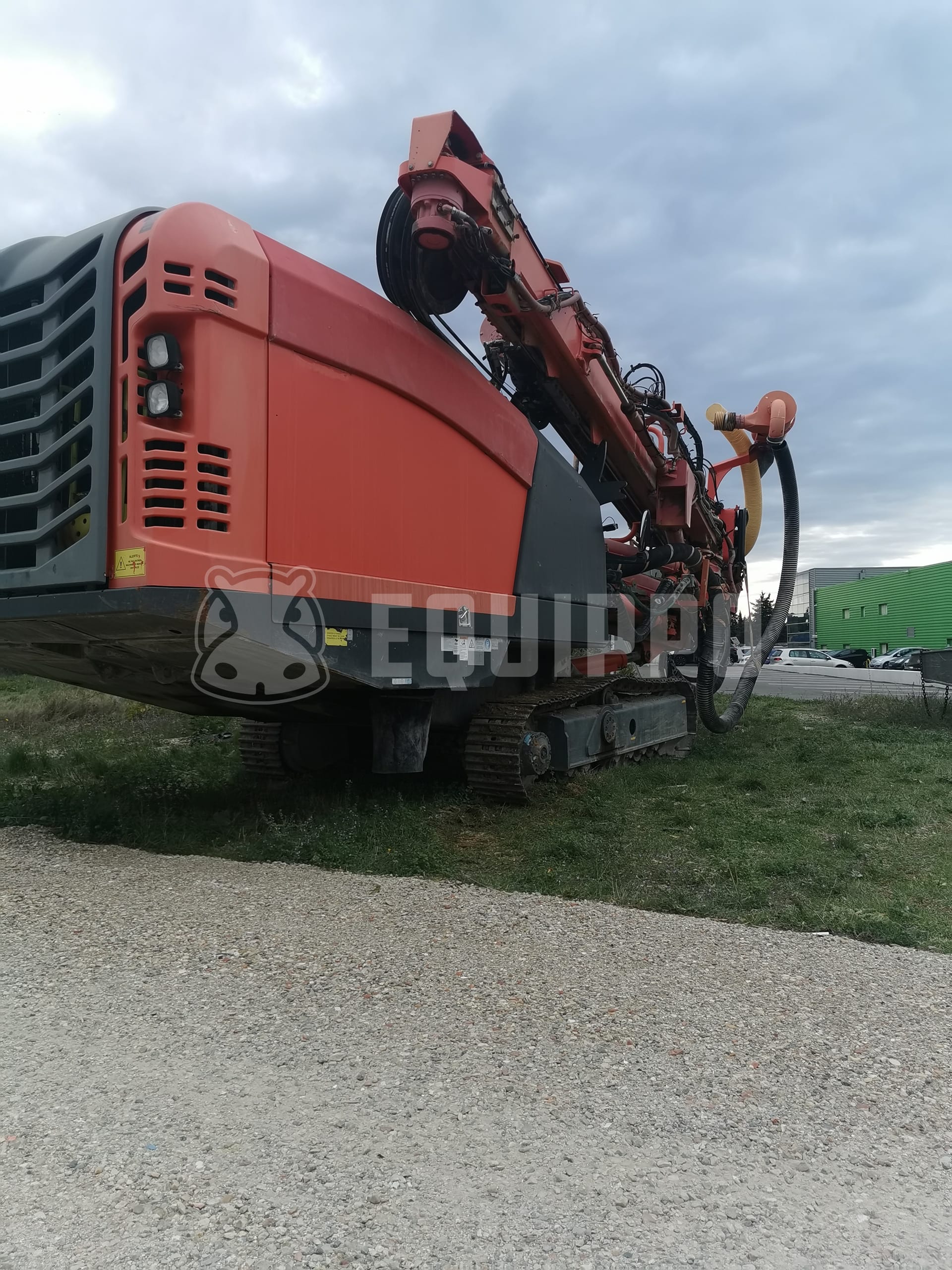

Sandvik DI550

2012 - Sandvik DI550 | Used Drill with in-hole hammer, water pump, auto lubrication, air compressor and dust collector.
Year 2012
Weight 25150 kg
Hours 5619
Serial Number 112H20656-1
Made In Finland
Location France
Engine Brand / Model Caterpillar C13

Inspection Summary

Overall condition
  • 33 Approved
  • 12 Imperfections
  • 1 Issues

Inspector's comment

Machine was working at time of inspection except as noted. Repairs and a full service recommended.

Inspected by

Our Independent expert inspector Garry Duc

Download full report

Equipment Details

Hour meter

Hour meter reading
5619 engine hours | 4681 compressor hours | 2077 drilling hours

Functional Test

Boom operation
some play in the mast nut
Mast operation
some play in the mast nut
Electrics
Drive train
Clamps
Air compressor operation
Hammer operation
Not tested
Dust collector operation
air hose is loose

General

Water filling pump

Cabin

Seat condition
Switches
left arm stand with switches doesn't stay in place
Gauges
Air Conditioning
Yes
Airconditioning
Heating
Cab door
Windows
windshield is cracked
Wiper
Floor mat
Structure

Engine

Engine Brand / Model
Caterpillar C13
Engine Power
328.0kW/439.855HP
Engine serial number
KWJ01572
No engine leaks
Oil condition
Exhaust
Normal smoke level
Cooling system
No engine blow by
Belts condition
Coolant condition
dirty

Exterior

Chassis
Engine hood
hood lock cylinders are broken
Steps, hands and rails
structure slightly bent
Paintwork
Boom condition
Lights
Rods
Mast
Hammer condition
Not tested
Dust collector condition
air hose is loose
Air hoses

Hydraulics

Hoses & lines
Pump and valve block
Boom cylinders

Undercarriage

Pins and bushings
70%
Pads type
Triple grouser bar
Links
70%
Bottom roller
30%
Idler
70%
Top roller
40%
Sprocket
70%

Dimensions

Weight
25150 kg
Length
11.1 m
Height
3.47 m
Width
2.44 m

Certifications and Documentation

CE marked
Yes

We recommend to do a full service on every machine before operating it, this includes changing the filters and oils, and making sure all fluids have the required fluid levels.
