2011 Kleemann MR 110 ZS EVO

Inspected

ID 24999

Kleemann MR 110 ZS EVO

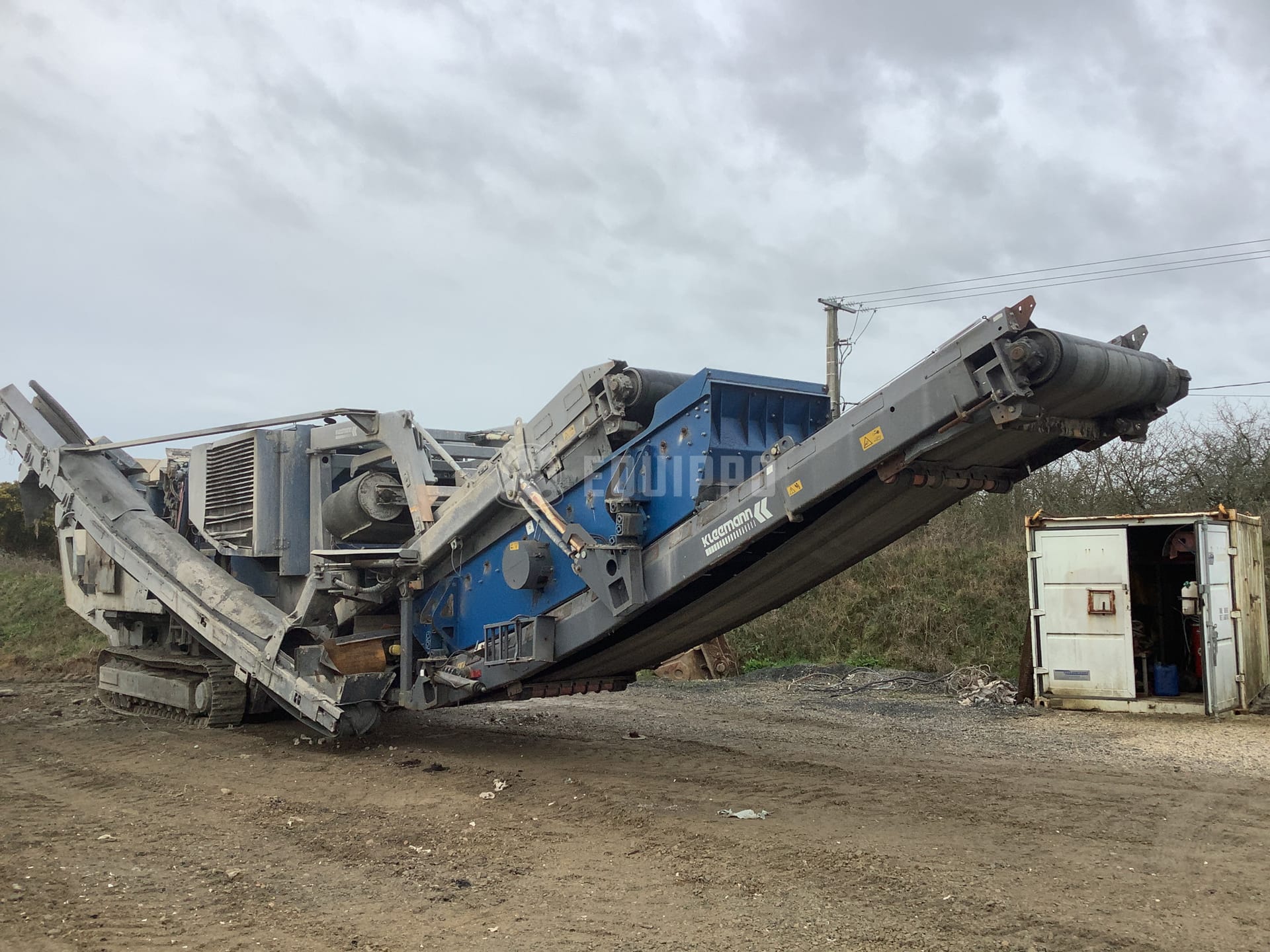

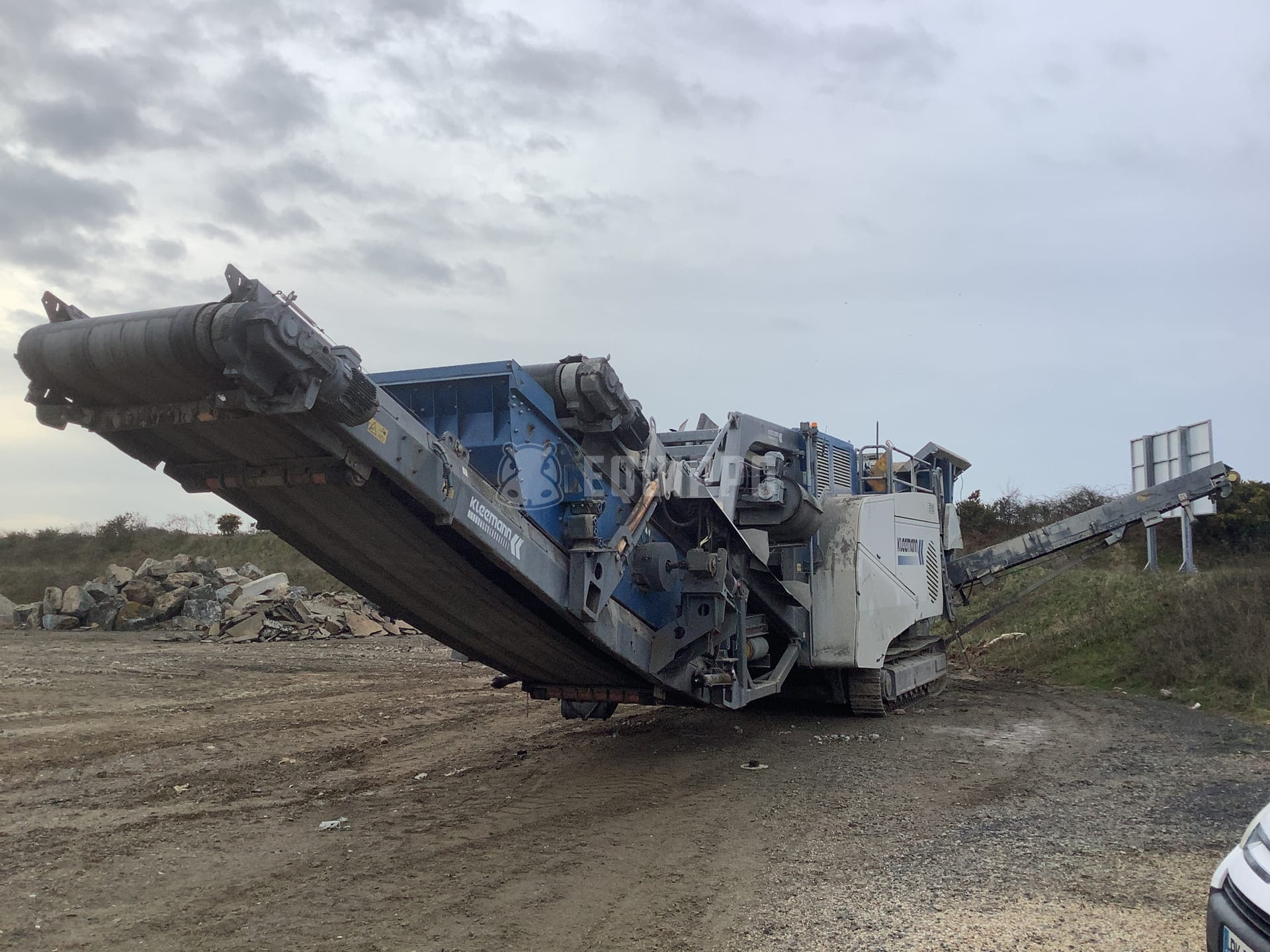

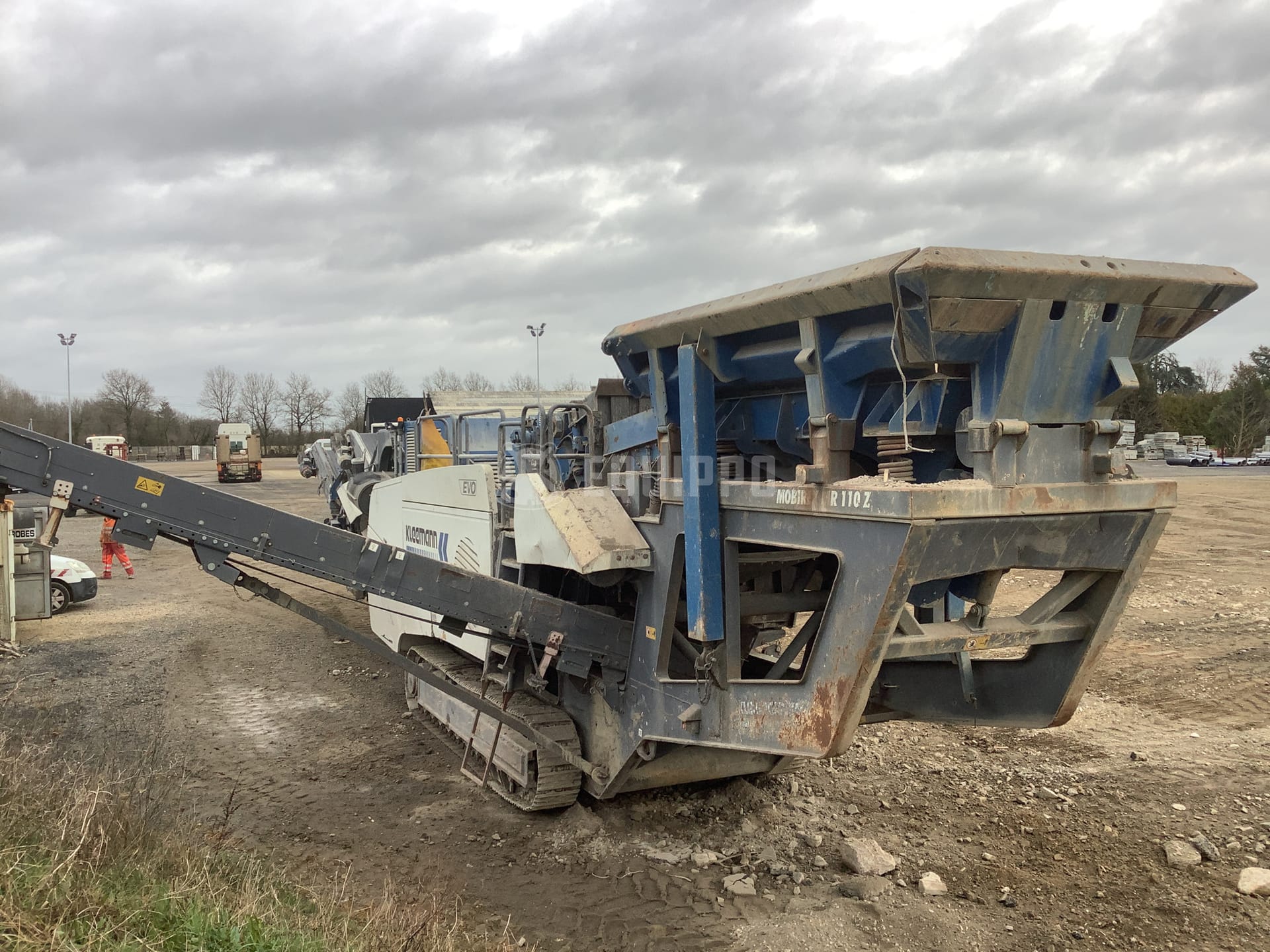

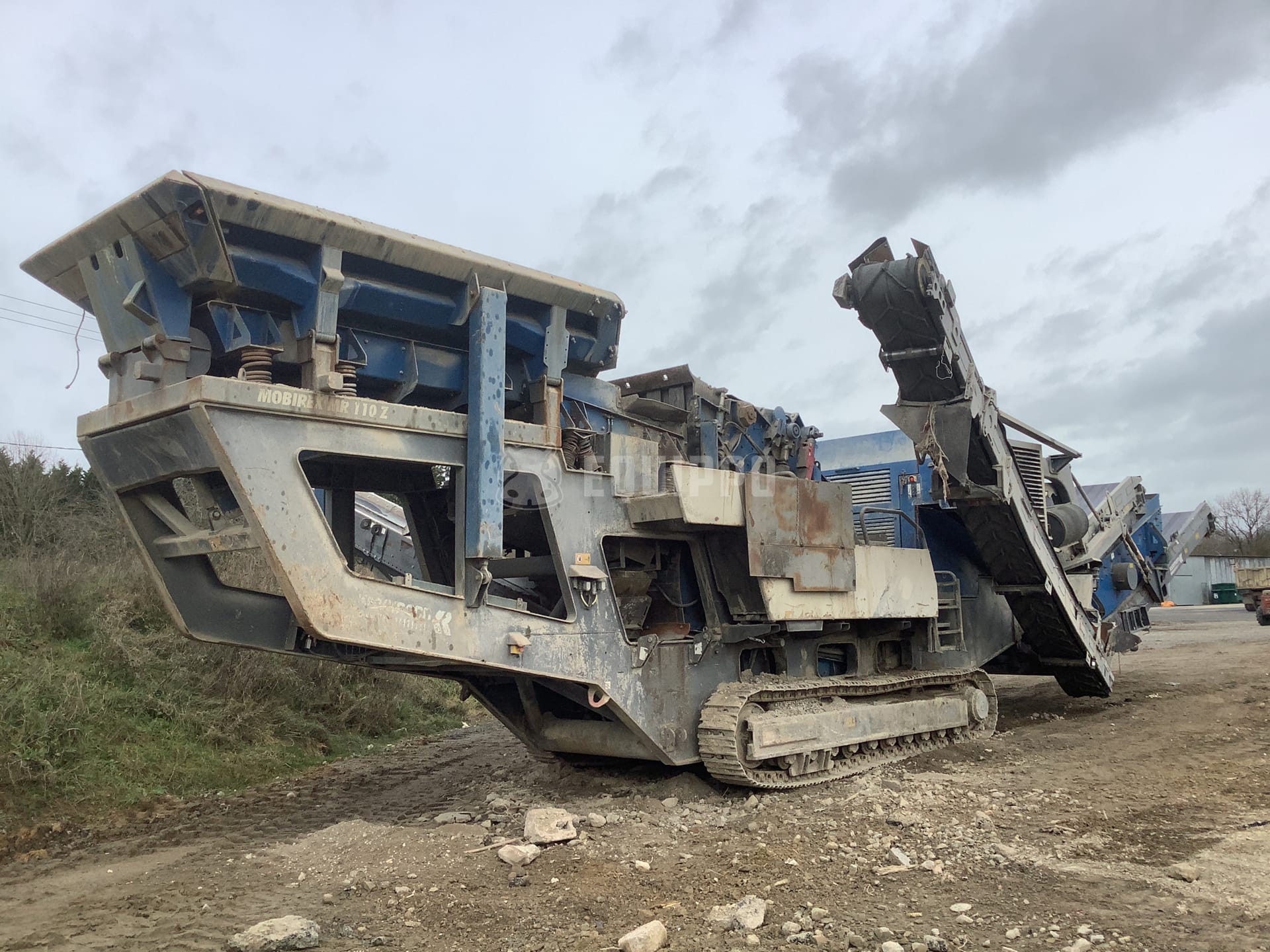

2011 Kleemann MR110 ZS EVO | Used Impact Crusher with 4 conveyors (main, 2 sides and return), single-deck horizontal screening on main conveyor line and additionnal screening on return conveyor line, magnetic separator, manual central lubrication, Continuous Feed System (CFS), Scania engine, remote control, hydraulic vibrating feeder and screening deck. Machine crushing capacity over 200 t/h. This machine is an authentic second hand and has always been operated by the same 2 operators since its first use on 6 June 2011.
Year 2011
Weight 58000 kg
Hours 11040
Condition Used - good condition
Serial Number K0170026
Made In Germany
Location France

Inspection Summary

Overall condition
  • 76 Approved
  • 9 Imperfections
  • 0 Issues

Inspector's comment

Machine was working at the time of inspection. Crusher liners and impactor were just changed.

Inspected by

Our expert inspector Wayne

Download full report

Equipment Details

Control station

Remote control
Yes
Controls

Engine

Brand & model
SCANIA
Engine Serial- No.
Text not clearly visible
Fuel Type
Diesel
Oil leaks
Oil condition
Recommend oil change
Oil level
Exhaust system
Smoke
normal
Cooling system
Blow-by at idle
Minor
Belts
Filters
Recommend full service
Diesel Particulate Filter (DPF)
No
Coolant condition

Exterior

Chassis & track frame
Engine hood
Steps & handrails
Catwalk
Paintwork
Some rusty spots and scratches.
Sheet metal
Damaged radiator grill
Batteries
Lights
Not connected
Central lubrication system
Central lubrication type
Manual

Feeder

Feeder length
2600 mm
Feeder width
2000 mm
Walls & liners
Springs
Feeder cracks
Wear
50%
Vibration
Yes
Scalper
Yes
Walls folding
Hydraulic

Hydraulics

Hydraulic fluid level
Hoses & lines
Controls & valves
Hydraulic cylinders
Conveyor motors
Vibrators

Crusher

Type of crusher
Impact
Crusher length
1200 mm
Crusher width
1100 mm
Diameter
1000 mm
Crusher cracks
Jaw wear
60%
Impactor wear
100% Just replaced
Liner wear
100% Just replaced
Belts & pulleys
Protection chains

Functional test

Conveyors
Magnetic separator
Feeder hopper
Crusher adjustment
Drivetrain
Operation fwd.
Operation rev.
Conveyor folders
Conveyors drive
Electrical system
Crusher protection
Emergency switches
Platform railings

Conveyors - Front discharge conveyor

Length
11800 mm
Width
1200 mm
Folding
No
Type of frame
Lattice frame
Overband magnet
Yes
Belt condition
slightly worn
Frame condition
Rollers
Idler

Conveyors - Side discharge conveyor

Width
650 mm
Length
6000 mm
Folding
No
Type of frame
C frame
Belt condition
Frame condition
Rollers
Idler

Conveyors - Second side discharge conveyor

Width
500 mm
Length
9000 mm
Folding
Yes
Type of frame
Lattice frame
Belt condition
Worn
Frame condition
Rollers
Idler
Some wear

Conveyors - Return conveyor

Length
6000 mm
Width
1200 mm
Folding
No
Type of frame
C frame
Belt condition
Frame condition
Rollers
Some wear
Idler
Some wear

Screen

No. of decks
1
Screen type
Horizontal
Vibration type
Hydraulic
Wall condition
Drive condition
Screens condition

Screen dimensions - Primary Screen

Screen length
2100 mm
Screen width
1000 mm

Screen dimensions - Secondary Screen

Screen length
4000 mm On return conveyor
Screen width
1300 mm

Undercarriage

Shoes type
Triple grouser
Shoes width
400 mm

Undercarriage - Undercarriage Right

Track pitch
170 mm
Track tensioner
Pins and bushings
60%
Rotated pins and bushings
No
Shoes
60%
Idler
60%
Top rollers
60% couldn't not evaluate thoroughly because covered with mud
Bottom rollers
60%
Links
60%
Sprocket
50%
Final drive

Undercarriage - Undercarriage Left

Track pitch
170 mm
Track tensioner
Pins and bushings
60%
Rotated pins and bushings
No
Shoes
60%
Idler
60%
Top rollers
60% couldn't not evaluate thoroughly because covered with mud
Bottom rollers
60%
Links
60%
Sprocket
50%
Final drive

Dimensions

Weight
58000 kg
Length
20 m
Height
3.6 m
Width
3 m

We recommend to do a full service on every machine before operating it, this includes changing the filters and oils, and making sure all fluids have the required fluid levels.
